MG2 Mechanical Excavator Grapple Grab – 2 to 3 tonne
£680.00 Exc. VAT

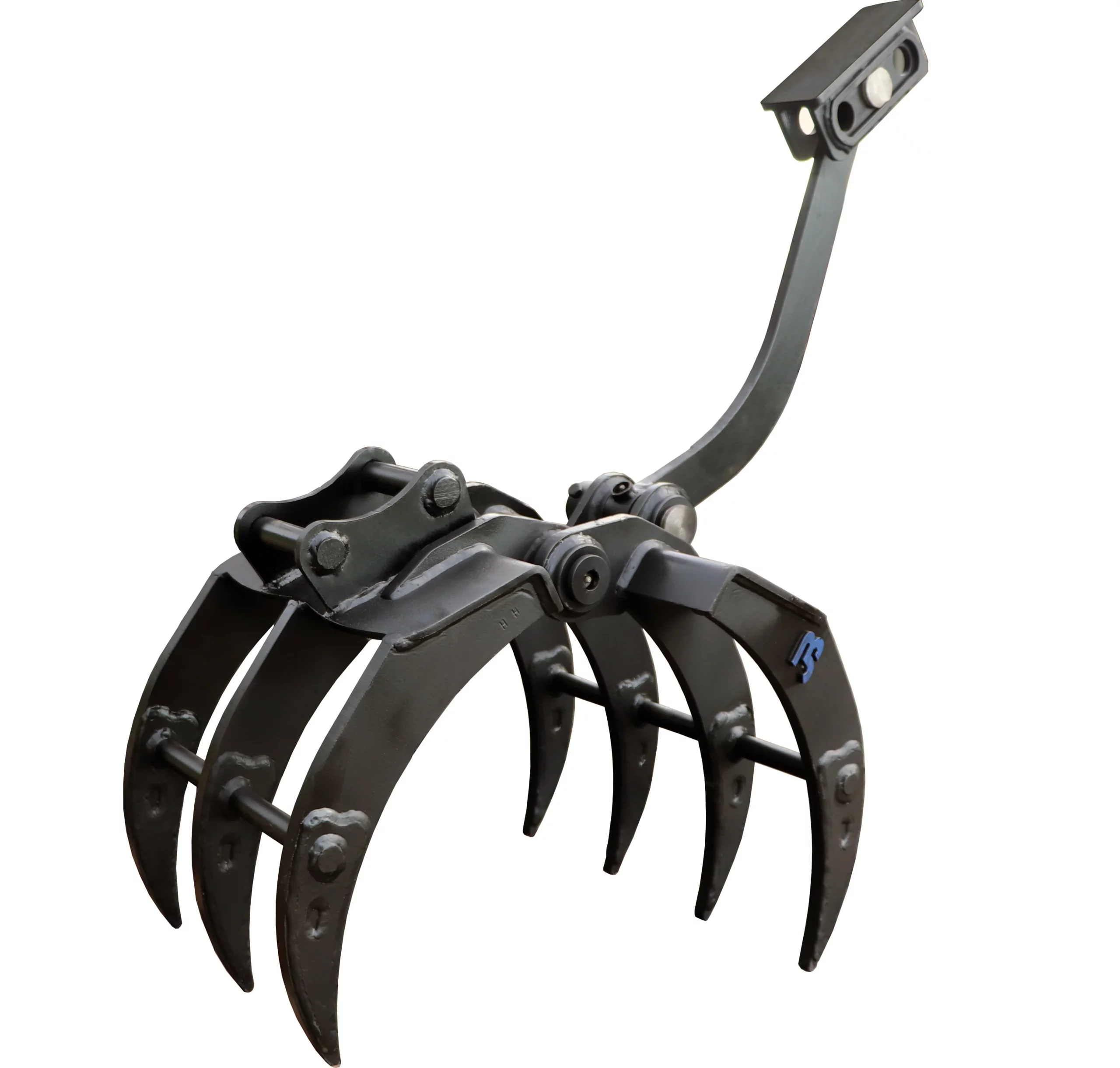

2-3 Tonne Mechanical Excavator Grapple
The mechanical excavator grapple is an economical solution for light weight and general purpose applications. Ideal for farms, small holdings and agricultural contractors for clearing wood, rocks and brash. The JB mechanical excavator grab is also well suited for skip waste, land clearance and general forestry applications.
The JB Equipment Manual Excavator grab is a popular budget choice for sorting and handling applications. Using the tried and tested 7 tine set up the MG2 is best suited to excavators from 2 tonne to 3.5 tonne such as a Kubota U20 / KX71-3, Hitachi ZX22U / ZX27U or Takeuchi TB225.

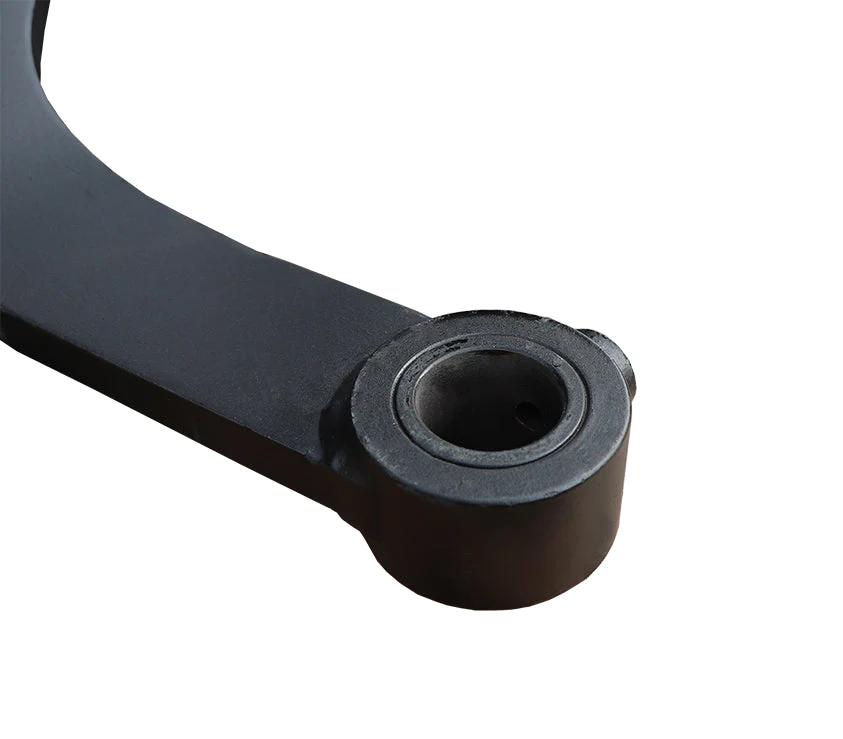

Supplied as 3 part kit; grab (with 2 pin linkage to suit excavator), weld on dipper pad and link arm.

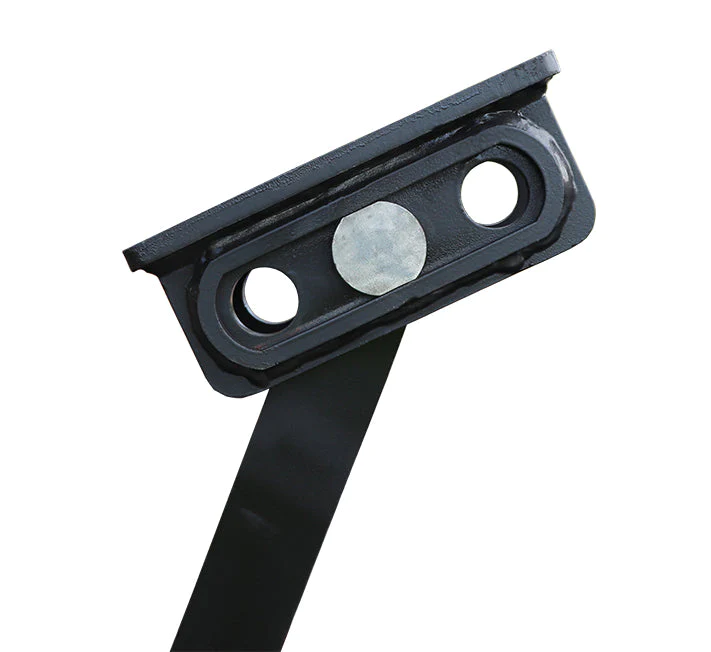

The grab utilises the crowd function of the bucket ram to operate the opening and closing of the grab without the need for self contained hydraulics. The link bar of the grab is connected to the dipper arm via a welded plate which fixes the 4 tine jaw in place.

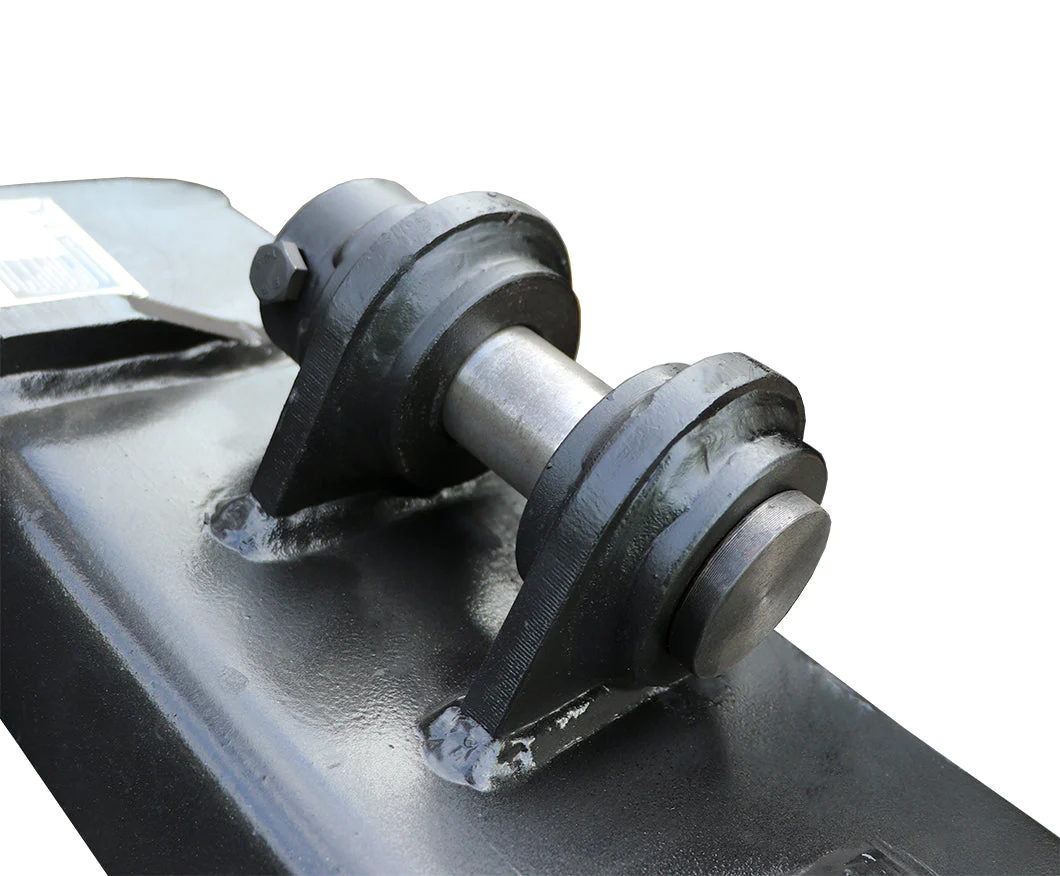

Extra strengthening straps welded to the side of each of the tines increases strength to stop bending when in use. Fully grease-able pivot points and line bore machining give the manual grab an excellent service life.
